33 33 091 Replacing both rubber mounts for rear axle carrier (M3 front left and right only)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 140
33 4 142
33 4 147
33 4 149
33 4 431
33 4 432
33 4 433
33 4 434
33 4 435
33 4 436
33 4 437

See REAR AXLE - SPECIAL TOOLS .

NOTE: On the M3 the front rubber mounts must be drawn from above into the rear axle carrier.

Necessary preliminary tasks:

Remove complete rear axle carrier

If necessary, assemble special tools 33 4 140 , 33 4 142 and 33 4 147 as illustrated.

If necessary, position new thrust pieces 33 4 149 with countersunk screws on special tool 33 4 140 .

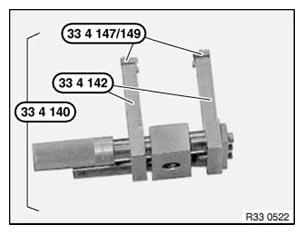

Fig 1: Identifying Countersunk Screws On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Oil special tool 33 4 436 slightly before use.

Withdraw rubber mount from bearing bushing with special tools 33 4 436 , 33 4 437 , 33 4 140 and 33 4 431 .

NOTE: Make sure special tool 33 4 140 is correctly supported on bearing bushing of rear axle carrier.
Fit special tool 33 4 431 on rubber mount in such a way that edge of rubber mount disappears in special tool.

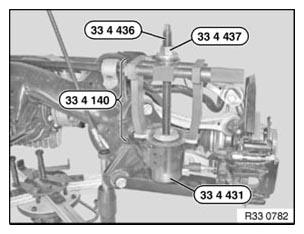

Fig 2: Identifying Special Tool On Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Arrows (1) must point in direction of longitudinal axis!
Opening (2) on underside must point to left!

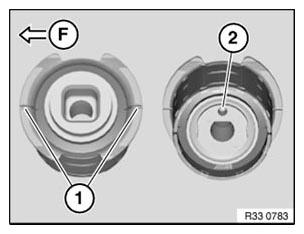

Fig 3: Identifying Arrows And Opening

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat new rubber mount with Circo Light (sourcing reference: BMW Parts Service).

Oil special tool 33 4 434 slightly before use.

Draw in new rubber mount with special tools 33 4 432 , 33 4 433 , 33 4 435 and 33 4 434 as far as it will go.

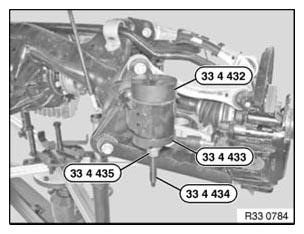

Fig 4: Installing Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Bleed braking system . See 34 00 050 BLEEDING BRAKE SYSTEM WITH DSC .
