32 31 241 Replacing adjusting lever for steering column

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

If necessary, remove cable duct from steering column.

Unclip adjusting lever.

Installation:

Align adjusting lever to steering column and attach straight to prevent the locks from being damaged.

Check locks after attachment, replace adjusting lever if necessary.

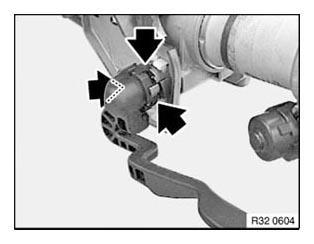

Fig 1: Locating Cable Duct
G06201355Courtesy of BMW OF NORTH AMERICA, INC.
