32 31 020 Removing and installing / replacing lower section of steering column trim
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove upper section of steering column trim . See 32 31 003 Removing and installing/replacing upper section of steering column trim .
- Move steering column into "top" and "extended" position and do not secure with adjusting lever

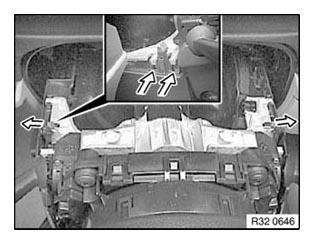

Press detent lugs outwards a little and unclip steering column trim downwards.
Installation:
Align steering column trim by means of detent lugs to steering column and press up as far as it will go.
Press steering column trim on both sides together a little and then press upwards completely until detent lugs snap into place.
Check installation position, correct if necessary.
