32 41... Instructions for removing and installing ear clips

Special tools required:

• 32 1 260

See STEERING AND WHEEL ALIGNMENT - SPECIAL TOOLS .

To remove an ear clip, place special tool 32 1 260  at right angles to ear and cut ear open.

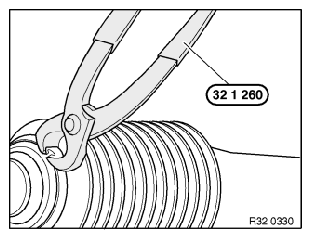

Fig 1: Removing Clip With Special Tool (32 1 260)

Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

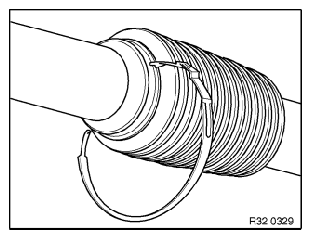

Fig 2: Identifying Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260  .

Fig 3: Clamping Hook With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Side cutter of special tool 32 1 260  can be used in areas which are difficult to access.

Fig 4: Siding Cutter Of Special Tool (32 1 260)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying Clamp Cap

Courtesy of BMW OF NORTH AMERICA, INC.
