32 41 332 Replacing pressure line for power steering (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of poisoning if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable container.

Observe country-specific waste-disposal regulations

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from fluid reservoir
Remove front underbody protection . See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION .
Remove compressor drive belt . See 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (S65) .

Release banjo bolt (1) and detach pressure line (2) from vane pump.

Installation:

Replace all sealing rings.

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Tightening torque 32 41 8AZ . See 32 41 PUMP AND OIL SUPPLY .

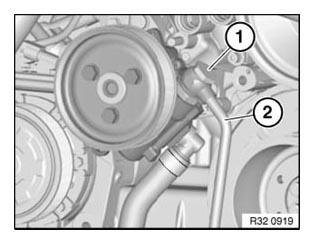

Fig 1: Identifying Banjo Bolt And Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

Expose pressure line up to connection on power steering gear.

Release banjo bolt (1) and remove pressure line (2).

Installation:

Replace all sealing rings.

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Tightening torque 32 41 9AZ . See 32 41 PUMP AND OIL SUPPLY .

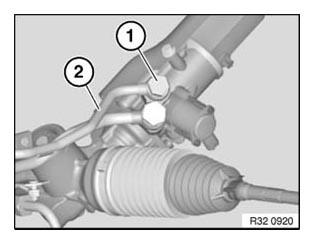

Fig 2: Identifying Banjo Bolt And Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed hydraulic system
Check pipe connections for leaks
