32 41 250 Removing and installing/replacing fluid reservoir for power steering
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of poisoning
if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!
Risk of injury if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.
Close off pipe connections with plugs.
Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Observe country-specific waste-disposal regulations
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Unclip coolant hose on coolant expansion tank

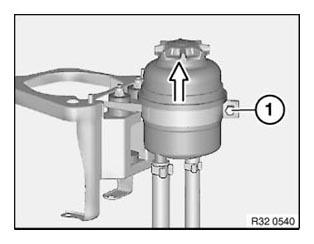

Release screw (1).
Tightening torque 32 41 1AZ . See 32 41 PUMP AND OIL SUPPLY .
NOTE:
If necessary, raise and/or turn fluid reservoir in order to gain better access to hose clamps.
Unfasten hose clips.
Disconnect suction line and radiator return line from fluid reservoir.
Lift out fluid reservoir.
Installation:
Make sure hydraulic lines are laid without tension and with sufficient spacing to adjoining components.
After installation:
- Fill and bleed hydraulic system
- Check pipe connections for leaks
