32 41 100 Removing and installing/replacing belt pulley on vane pump for power steering
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Carry out preliminary work as described in the document "Replacing drive belt"
.

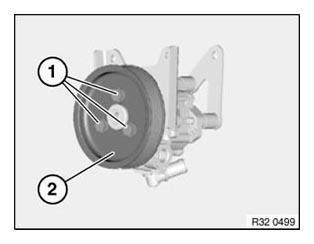

Slacken screws (1)
Relieve tension on drive belt and remove from belt pulley (2).
Unscrew bolts (1) and remove belt pulley (2).
Installation:
Lettering on belt pulley (2) must point forwards.
Tightening torque 32 41 3AZ . See 32 41 PUMP AND OIL SUPPLY .
