33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
A wheel/chassis alignment check must be carried out after the following work: See 32 00 150 KDS chassis/wheel alignment check with load up to design position or 32 00 155 KDS chassis/wheel alignment check with ride-height measurement without load .
- Release of following screw/bolt connections:
- Camber arm to rear axle carrier / wheel carrier
- Trailing arm to rear axle carrier / wheel carrier
- Guide arm to rear axle carrier
- Toe arm to rear axle carrier / wheel carrier
- Control arm to rear axle carrier

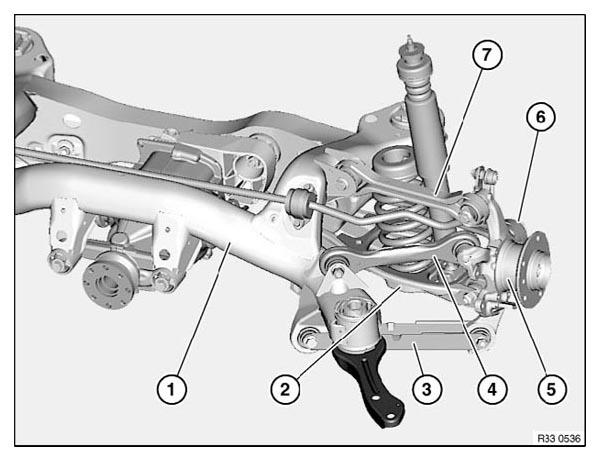

- Replacement of following parts:
- Rear axle carrier
- Camber arm / rubber mount / ball joint
- Trailing arm / rubber mount
- Guide arm
- Wheel carrier / rubber mount / ball joint
- Toe arm
- Control arm
