26 11 090 Removing and installing/replacing front centering mount for propeller shaft

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 500

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

11 1 310
11 2 030

See ENGINE - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove propeller shaft .

Completely fill centering bore (1) with viscous grease.

Drive special tool 11 1 310 with a plastic hammer into centering bore.

The centering mount (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

NOTE: To drive out the mount, you can also fill the centering bore with water instead of grease.

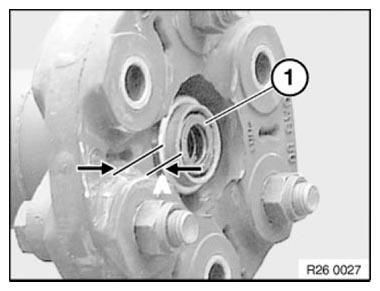

Fig 1: Special Tool In Centering Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove grease/water from mount bore.

Drive in centering mount (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

Grease centering mount.

Grease: See PROPELLER SHAFT - OPERATING FLUIDS .

Fig 2: Identifying Special Tool (11 2 030 And 00 5 500)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe protrusion A = 4+2 mm of centering (1).

Fig 3: Identifying Centring Protrusion Length
