17 21 010 Removing and installing/replacing transmission oil cooler
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
It is essential to adhere to the exact filling capacities specified.
Fill transmission at room temperature only (approx. 20°-30°C).
Gear oil:
refer to AUTOMATIC TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the transmission.
Fill transmission at room temperature only (approx. 20°-30°C).
Gear oil:
refer to AUTOMATIC TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the transmission.
Recycling:
Catch and dispose of gear oil with suitable equipment.
Observe country-specific waste-disposal regulations.
Necessary preliminary tasks:
- Remove right wheel arch cover . See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) .
- Drain transmission oil . See 00 11 229 CHANGING / TOPPING UP / CHECKING GEAR OIL IN MANUAL TRANSMISSION .

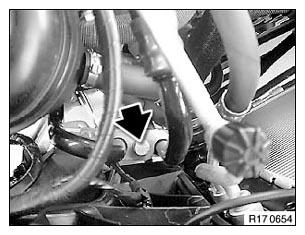

Release connections for transmission oil cooler.

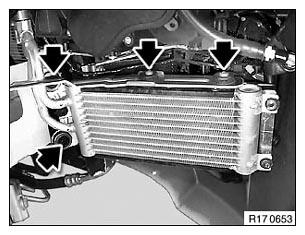

Release brackets for transmission oil cooler.
Add final details to vehicle.
Check system for leaks.
