16 14 500 Removing and installing or replacing control unit for electric fuel pump

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

E81, E82, E87, E91 and E92:
Remove backrest side section for right rear seat. See 52 24 010 REMOVING AND INSTALLING / REPLACING BACKREST .
E90:

Remove backrest

Disconnect plug connection (1).

Release nuts (2) and remove control unit (3).

Installation:

Tightening torque 16 14 2AZ . See 16 14 FUEL PUMP .

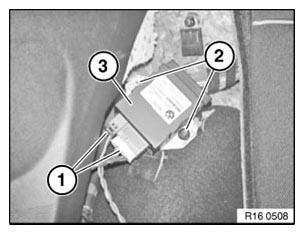

Fig 1: Identifying Control Unit And Plug Connection With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Except for M3, carry out programming/coding (M3 is not programming- or coding-relevant)
