13 62 601 Replacing pulse generator on left inlet camshaft (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 5 to 8)

Necessary preliminary tasks:

Read out fault memory of DME control unit; if necessary, work through test schedules
Switch off ignition
Remove intake filter housing
Remove left ignition coil cover

Release plug connector (1) and pull off.

Release screw.

Remove pulse generator (2).

Installation:

Replace sealing ring and coat with antiseize agent.

Tightening torque, 13 62 5AZ . See 13 62 SENSORS (S65)

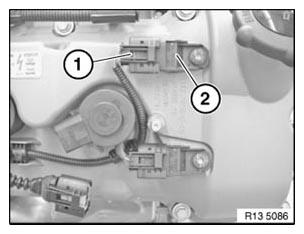

Fig 1: Identifying Plug Connector And Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Now clear the fault memory.
