11 13 000 Removing and installing or replacing oil sump (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Recycling:

Catch and dispose of used oil in a suitable container.

Observe country-specific waste-disposal regulations.

Necessary preliminary tasks:

Drain engine oil.
Secure engine in installation position .
Lower front axle. See 31 11 506 LOWERING/RAISING FRONT AXLE CARRIER (M3, UNIVERSAL LIFTER) .
Remove ribbed V-belt.
Release 4x transmission bolts.

Release screws (1).

Take off holder (2).

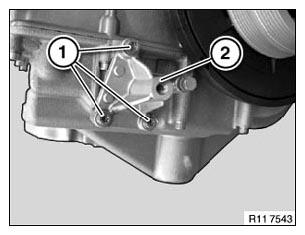

Fig 1: Identifying Screws And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Oil Sump Holder Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

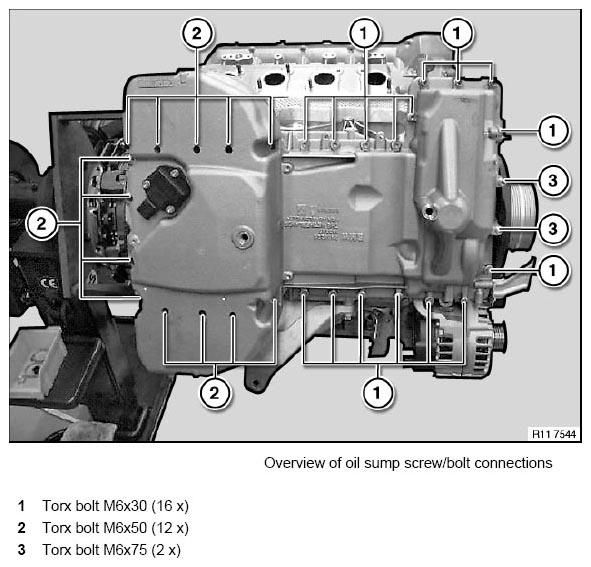

Overview of oil sump screw/bolt connections

Torx bolt M6x30 (16 x)
Torx bolt M6x50 (12 x)
Torx bolt M6x75 (2 x)

Tightening torque. 11 13 2AZ . See OIL SUMP .

Clean sealing faces (1) with special tool 11 4 470.

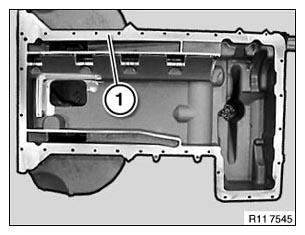

Fig 3: Identifying Sealing Faces

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace oil sump gasket (1).

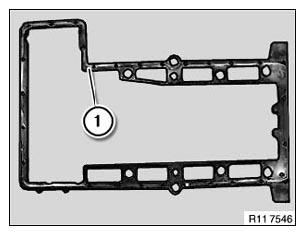

Fig 4: Identifying Oil Sump Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
