61 61 041 Replacing both windscreen wiper blades

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Make sure the wiper arm does not contact the windscreen without its wiper blade.

Fold wiper arm (3) away from windscreen.

Press lock (1) and remove cover cap (2) in direction of arrow.

Installation:

Make sure cover cap (2) is correctly seated.

Fig 1: Removing Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Turn windscreen wiper blade (1) at an angle of 90° and remove from windscreen wiper arm (2).

Fig 2: Turning Windscreen Wiper Blade

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guide (2) of window cavity cover cap (6) must not be damaged or missing.

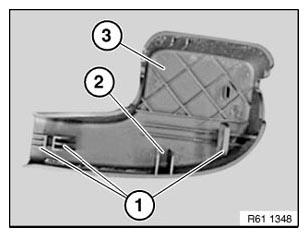

Fig 3: Identifying Catches, Guide And Window Cavity Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.
