61 31... Overview of switches

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

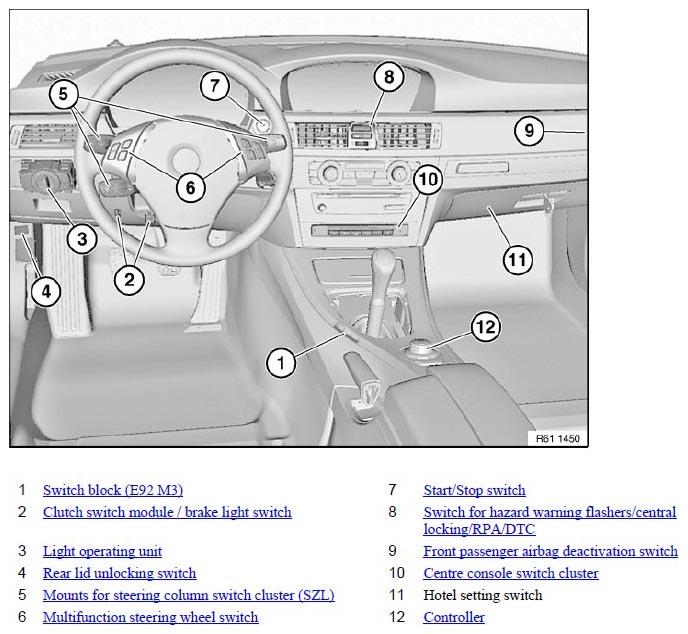

Fig 1: Identifying Switches Location
G06202009Courtesy of BMW OF NORTH AMERICA, INC.
