61 31 241 Removing and installing/replacing right hood/bonnet contact switch (M3)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

NOTE:

See HEATING AND AIR CONDITIONING - SPECIAL TOOLS .

Lever bonnet/hood contact switch (1) with special tool 64 1 020 out of microfilter housing upper section (2).

Disconnect plug connection (3) and remove bonnet/hood contact switch (1).

Installation:

Make sure bonnet/hood contact switch (1) is correctly seated in microfilter housing upper section (2).

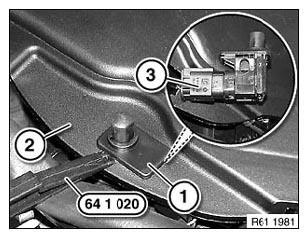

Fig 1: Removing Bonnet/Hood Contact Switch

Courtesy of BMW OF NORTH AMERICA, INC.
