61 31 194 Removing and installing/replacing Drivelogic button (M3)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim for storage compartment . See 51 16 212 REMOVING AND INSTALLING TRIM FOR STORAGE COMPARTMENT .

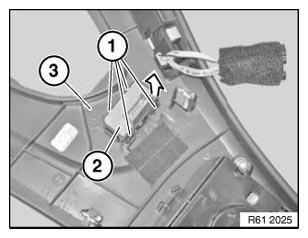

Unlock catches (1) with a suitable tool.
Remove Drivelogic button (2) in direction of arrow from storage compartment trim (3).
Installation:
Make sure Drivelogic button (2) is correctly seated on storage compartment trim (3).
