61 30 020 Removing and installing/replacing switch block (M3)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim for storage tray . See 51 16 212 REMOVING AND INSTALLING TRIM FOR STORAGE COMPARTMENT .

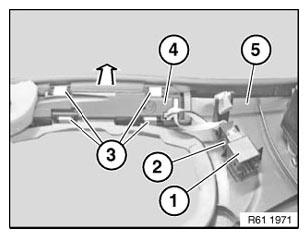

If necessary, remove socket housing (1) from holder (2).
Unlock catches (3) and feed switch block (4) in direction of arrow out of storage compartment trim (5).
Installation:
Make sure switch block catch (4) engages correctly in storage compartment trim (5).
If necessary, make sure socket housing (1) is correctly seated in holder (2).
