61 14 010 Removing and installing/replacing distribution box (on battery) (Coupe/Convertible)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe safety instructions for handling vehicle battery.

Necessary preliminary tasks:

Disconnect battery negative lead

Release screws (1) and remove bracket (2). Tightening torque, see 61 14 1AZ in 61 14 DISTRIBUTION BOX, CURRENT TERMINALS .

Fig 1: Identifying Screws And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

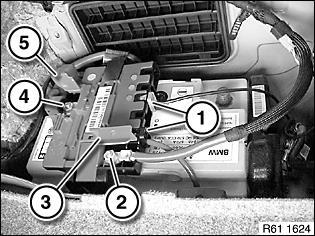

Disconnect plug connection (1). Fold back cover (3). Slacken nut (2). Tightening torque, see 61 21 2AZ in 61 21 BATTERY WITH TERMINAL . Fold back cover (5). Slacken nut (4)..

Fig 2: Disconnect Plug Connection (1), Fold Back Cover (3), Slacken Nut (2)

Courtesy of BMW OF NORTH AMERICA, INC.

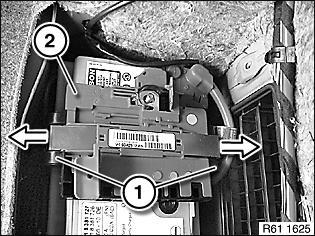

Press locking brackets (1) downwards and unclip. If necessary, using a screwdriver, expand locking bracket (1) at lower end and clip out. Remove distribution box (2) towards top.
