61 12 002 Replacing battery positive lead (from battery to luggage compartment connector) (Coupe/Convertible)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe safety instructions for handling vehicle battery.

Necessary preliminary tasks:

Remove battery

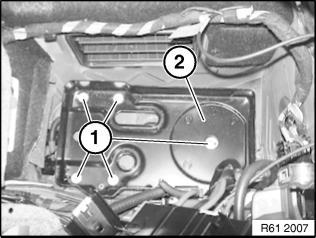

Release screws (1). Remove battery holder (2) from body.

Fig 1: Removing Battery Holder From Body

Courtesy of BMW OF NORTH AMERICA, INC.

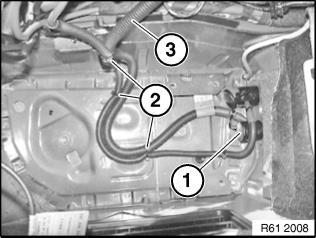

Unclip cap (1) and release nut underneath. Tightening torque, see 61 12 1AZ in 61 12 AUXILIARY CABLE . Release cable ties (2) and disconnect battery positive lead (3).

Fig 2: Unclip Cap And Release Nut Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of short circuits!

During installation, make sure battery positive lead (3) is correctly screwed and seated on luggage compartment connector.
