00 11 259 Oil change in rear differential incl. used oil disposal
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning if exhaust system is touched!
Danger of poisoning if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!
Danger of poisoning if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!
IMPORTANT:
Risk of damage!
To avoid serious damage to the rear differential, it is essential to use only approved transmission oils in the rear differential.
To avoid serious damage to the rear differential, it is essential to use only approved transmission oils in the rear differential.
NOTE:
Only change oil when rear differential is at normal operating temperature.
Recycling:
Catch and dispose of emerging differential oil.
Observe country-specific waste-disposal regulations
WARNING:
Scalding hazard!
Risk of burning on the exhaust system.
Risk of burning on the exhaust system.
Place oil collecting apparatus underneath.

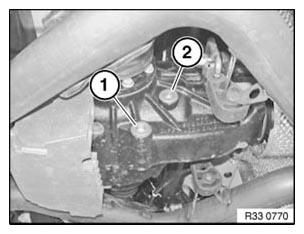

Open plug (1).
Drain and dispose of differential oil.
Replace screw plug.
Tightening torque 33 11 3AZ , see FINAL DRIVE WITH COVER .
Open plug (2).
Add differential oil up to lower edge of opening for screw plug (2) for necessary fill quantity.
Replace screw plug.
Tightening torque 33 11 3AZ , see FINAL DRIVE WITH COVER .
