00 11 ... Checking/topping up oil level in rear differential (M3)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Scalding hazard!
Risk of burning on the exhaust system.
Risk of burning on the exhaust system.
IMPORTANT:
Risk of damage!
To avoid serious damage to the rear axle differential, it is essential to use only approved transmission oils in the rear axle differential.
To avoid serious damage to the rear axle differential, it is essential to use only approved transmission oils in the rear axle differential.

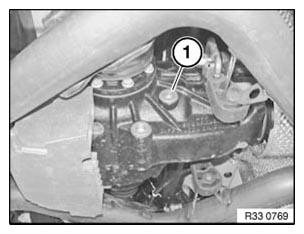

Undo oil filler plug (1).
Check oil level.
If necessary, pour in rear differential oil up to lower edge of opening for oil filler plug (1).
Installation:
Replace oil filler plug.
Tightening torque 33 11 3AZ , see FINAL DRIVE WITH COVER .
