00 ... ... Raising vehicle with trolley jack

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe the following trolley-jack-related instructions:

Use only BMW-distributed/approved trolley jacks which have rubber plate contact points.
Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
Check the rubber plate on the trolley jack prior to each use, replacing if necessary.

Fig 1: Identifying Trolley Jacks

Courtesy of BMW OF NORTH AMERICA, INC.

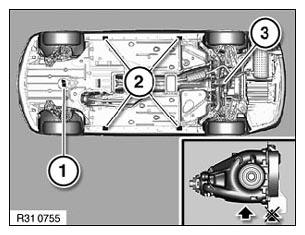

WARNING: The vehicle may be raised with a trolley jack only at the following jacking points!

Car jacking point on reinforcement strut (rear-wheel drive)
Side car jacking points
Rear differential

Fig 2: Identifying Car Jacking Point
Courtesy of BMW OF NORTH AMERICA, INC.

Risk of damage: It is not permitted to raise the vehicle at the rear differential cover!

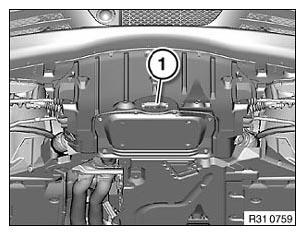

Car jacking point on front axle carrier (all-wheel drive)

Fig 3: Identifying Car Jacking Point On Front Axle Carrier (All-Wheel Drive)
Courtesy of BMW OF NORTH AMERICA, INC.
