Removal & Installation
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

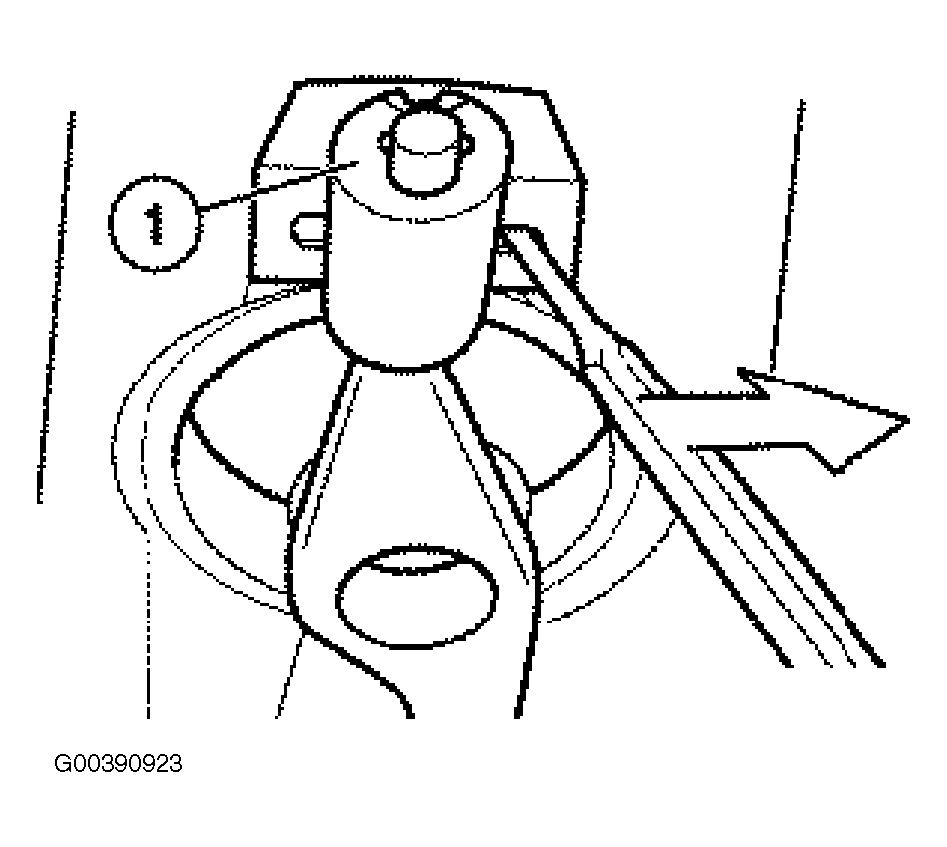

Remove transmission underbody protection if necessary. Lever out support bearing (1) from bracket. Pull support off shift arm. See Figure .

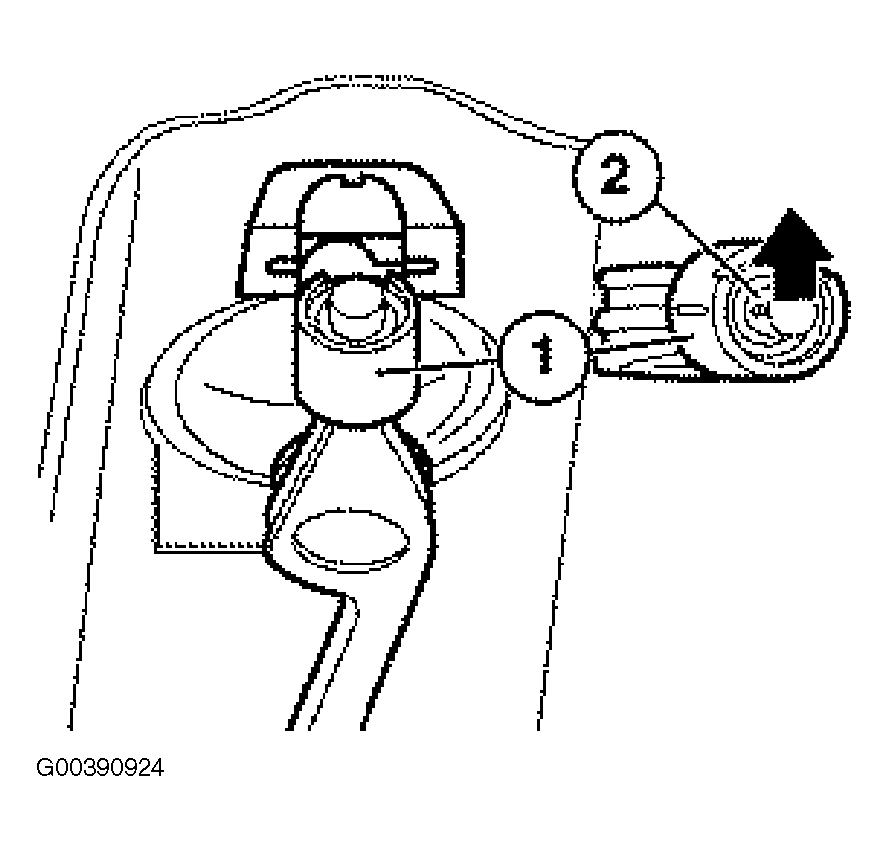

During installation, insert support bearing (1) with arrow (2) pointing up into retainer. See Figure .
Detach support bearing (1) from shift arm. During installation, grease bearing pin of shift arm. Attach support bearing (1) with opening (3) facing rear to shift arm. SeeFigure .
