54 37 225 Removing and installing/replacing right convertible top compartment lid hydraulic cylinder
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove support tube trim on left or right
CAUTION:
Hydraulic fluid may emerge from the disconnected lines and the open connections on the hydraulic cylinder.
Protect components and work area with suitable materials (e.g. cloths).
Protect components and work area with suitable materials (e.g. cloths).
NOTE:
Hydraulic system must be at zero pressure.
Open screw on hydraulic unit 1.5 turns.
Open screw on hydraulic unit 1.5 turns.
IMPORTANT:
Convertible top compartment lid can tilt forwards when hydraulic cylinders are removed and must be supported with suitable apparatus.
Open rear lid.
Release screw (1).
Installation:
Replace screw (1) and insert with Loctite.
Removing hydraulic cylinder:
- Slide retaining clip (1) upwards.
- Detach ball sockets at sides.
- Feed out hydraulic cylinder.

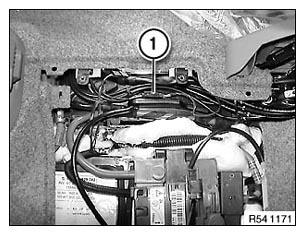

Unfasten plug connection (1) and disconnect.
Detach cable connectors.
Installation:
Replace faulty cable ties.
Feed out wiring harness.
IMPORTANT:
Protect joints (lines and cylinder) against dripping fluid, e.g. with a cleaning cloth.
Detach cable connectors.
Installation:
Replace faulty cable ties.
Slide open retaining rings (1) with screwdriver.
Detach hydraulic lines (2).
Installation:
- Carry out operational check.
- Check convertible top settings.
- Check fluid level.
