On-the-job safety

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove  remnants of adhesive from roof shell.

Clean adhesive area with Isohexane.

Air drying time: ≥ 1 minute

IMPORTANT: Adhesive area must be dry and free from dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

Use 4 mm and 7 mm dia. butylene thread (see BMW Parts Service).

Use 1.5 mm x 15 mm butylene flat tape (see BMW Parts Service).

Overview of butylene flat tape laying on front roof shell corner, left/right:

  1. Apply butylene flat tape from threaded bush to shortly after metal overlap to roof shell corner.
    Fig 1: Identifying Butylene Flat Tape Laying On Front Roof Shell Corner, Left/Right
    G06181138Courtesy of BMW OF NORTH AMERICA, INC.

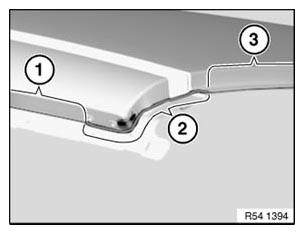

Overview of butylene thread laying on middle roof shell, front:

  1. Apply 4 mm dia. butylene thread in sheet metal groove.
  2. Apply 7 mm dia. butylene thread in sheet metal groove.
  3. Apply 4 mm dia. butylene thread in sheet metal groove.

Installation:

Connect and smooth butylene thread joints with plastic wedge.

Fig 2: Identifying Butylene Thread Laying On Middle Roof Shell, Front
G06181139Courtesy of BMW OF NORTH AMERICA, INC.

Overview of butylene flat tape laying on rear roof shell corner, left/right:

  1. Apply butylene flat tape from threaded bush to shortly after metal overlap to roof shell corner.
    Fig 3: Identifying Butylene Flat Tape Laying On Rear Roof Shell Corner, Left/Right
    G06181140Courtesy of BMW OF NORTH AMERICA, INC.

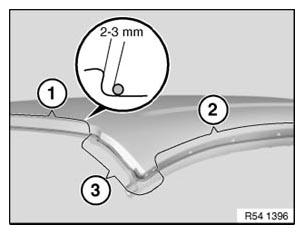

Overview of butylene thread laying on middle roof shell, side/rear left and right:

  1. Apply 4 mm dia. butylene thread at distance of 2-3 mm to roof edge.
  2. Apply 4 mm dia. butylene thread in sheet metal groove.
  3. Apply 7 mm dia. butylene thread in sheet metal groove.

Installation:

Connect and smooth butylene thread joints with plastic wedge.

Fig 4: Identifying Butylene Thread Laying On Middle Roof Shell, Side/Rear Left And Right
G06181141Courtesy of BMW OF NORTH AMERICA, INC.

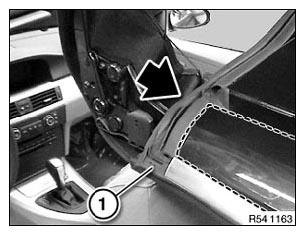

Installation:

A second person will be need to help install the seal.

Position seal (1) at front corner on left and right of roof shell.

Press seal down in area (1).

Fig 5: Positioning Seal At Front Corner On Left And Right Of Roof Shell
G06181142Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Press seal down at side.

Carry over noted gap dimensions and screw down seal.

Tightening torque: 54 37 01AZ, see 54 37 POWER CONVERTIBLE TOP .

Mount seal at rear on roof shell.

Fig 6: Mounting Seal At Rear On Roof Shell
G06181132Courtesy of BMW OF NORTH AMERICA, INC.

Check retraction depth of windows and adjust  if necessary.

Carry out leak test  .
