52 24 408 Replacing left backrest cover for rear seat

Special tools required:

• 52 0 050

See SEATS - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove left backrest cover

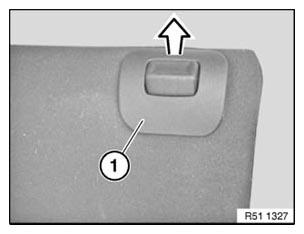

Unclip trim cover (1) for released button on left and right.

Installation:

If necessary, replace faulty trim.

Fig 1: Identifying Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

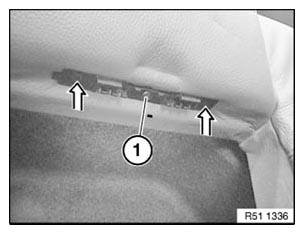

Release screw (1).

Push through plastic pins.

Fig 2: Identifying Screw And Plastic Pins

Courtesy of BMW OF NORTH AMERICA, INC.

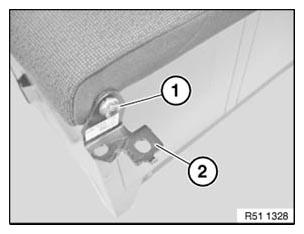

Unscrew nut (1).

Remove outer mount (2).

Fig 3: Identifying Nut And Outer Mount

Courtesy of BMW OF NORTH AMERICA, INC.

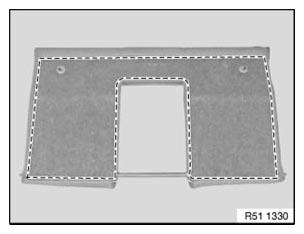

Lever out welt from backrest cover all round with plastic wedge.

Fig 4: Identifying Welt And Plastic Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

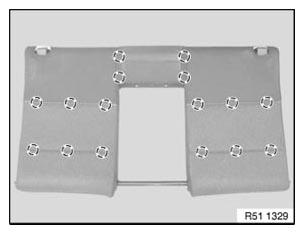

Detaching cover and padding:

• Release all retainers in marked area
• Remove cover from padding
• Remove remaining retainers from cover and padding
  Fig 5: Identifying Retainers Marked Area

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainer (2) with special tool 52 0 050.

In so doing, enclose wire in padding and trim wire of cover and bend closed.

1. Padding
2. Retainer
3. Trim wire in padding
4. Trim wire in seat cover
5. Seat cover
   Fig 6: Inserting Retainer With Special Tool

   Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

• Remove all trim wires from cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into cover pockets

Fig 7: Identifying Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.
