52 24 030 Removing and installing complete armrest (filler element) for rear seat backrest

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Press lock (1) and remove filler element (2).

Installation:

Make sure filler element is correctly inserted in rear seat backrest.

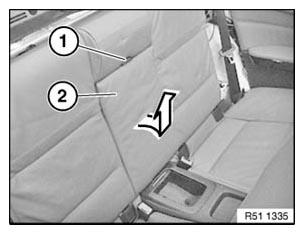

Fig 1: Identifying Lock And Filler Element

Courtesy of BMW OF NORTH AMERICA, INC.
