52 16 048 Removing and installing thigh support on left or right front seat

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Release thigh support and move forward.

Lever welt (1) of seat cover out of thigh support.

Fig 1: Identifying Welt

Courtesy of BMW OF NORTH AMERICA, INC.

Turn thigh support (1) over.

Detach trim wire from metal lugs.

Fig 2: Identifying Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

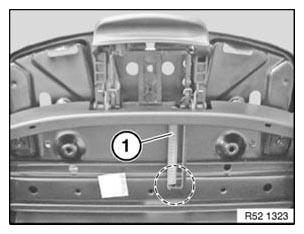

Disconnect spring (1).

Fig 3: Identifying Spring

Courtesy of BMW OF NORTH AMERICA, INC.

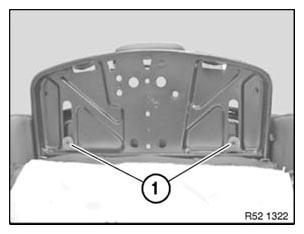

Release screws (1).

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release thigh support and pull forward to remove from seat mechanism.

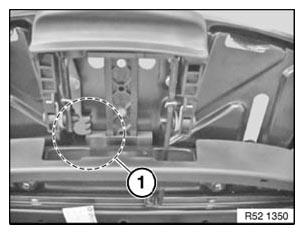

View of thigh support mechanism:

Locking mechanism for thigh support

Fig 5: Locking Mechanism For Thigh Support
Courtesy of BMW OF NORTH AMERICA, INC.
