52 14 040 Removing and installing or replacing outer covers on left or right front seat
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Move seat upwards.

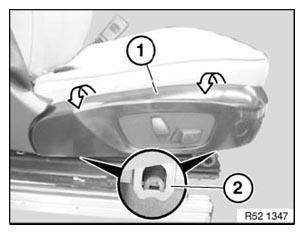

Lift out bottom tabs (2) and detach cover from carrier.
Unclip cover (1) at top.
Unfasten plug connection and disconnect.
Replacement only:

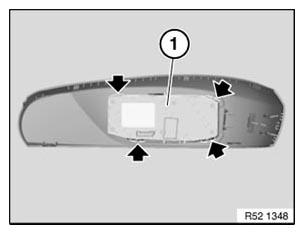

Raise tabs slightly and remove switch cluster (1).
Installation:
Tabs and retainers must not be damaged.
