22 32 001 Replacing rubber mount for transmission mounting (ATC 450)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

22 1 051
22 1 052
33 4 465
33 4 466
22 1 102
22 1 053

Necessary preliminary tasks:

Remove crossmember for transmission mounting. See 22 32 050 REPLACING CROSSMEMBER FOR TRANSMISSION MOUNTING .

Attach special tool 22 1 051 with screw (1) on the housing. Pull out rubber mount with special tools 22 1 052 / 33 4 465 and 33 4 466.

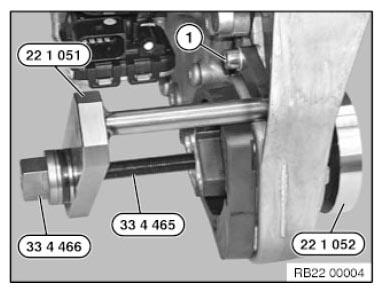

Fig 1: Pulling Rubber Mount Using Special Tools (22 1 052/33 4 465 And 33 4 466)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Observe installation position of rubber mount. Arrow on rubber mount must point to arrow on housing. Coat housing bore and rubber mount with Circolight, refer to BMW Parts Service.

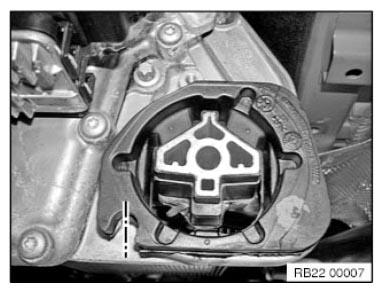

Fig 2: Identifying Rubber Mount Installation Position With Marking On Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool22 1 102 with bolt into recesses of rubber mount.

Fig 3: Identifying Special Tool (22 1 102)

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in rubber mount with special tools 22 1 102 / 22 1 053 / 33 4 465 and 33 4 466.

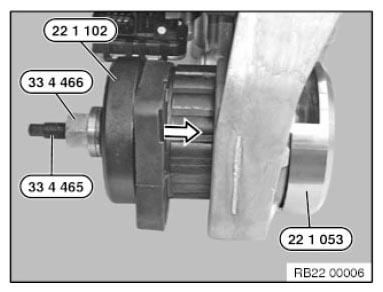

Fig 4: Installing Rubber Mount Using Special Tools (22 1 102/22 1 053/33 4 465 And 33 4 466)

Courtesy of BMW OF NORTH AMERICA, INC.
