18 12 050 Replacing left or right centre silencer (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 2 220 . See FRONT AXLE - SPECIAL TOOLS .

WARNING: Scalding hazard!
Only perform this work after engine has cooled down.
Danger of injury!
Removal of the exhaust system must be carried out with the assistance of a second person.

Support centre silencer with special tool 31 2 220 and a suitable universal lifter.

Fig 1: Identifying Special Tool (31 2 220)

G04774161

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the separation point is not marked by a punch mark on the pipe, determine the separation point by means of the pipe length on the new centre silencer.

Carry over separation point to faulty centre silencer (1) or (2) and mark out. Secure centre silencer against falling off. Cut through exhaust pipes at marked point with a suitable tool.

Fig 2: Carrying Over Separation Point To Faulty Center Silencer

G00530391

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical. Unscrew nuts (1). Tightening torque 18 31 1AZ. Replace self-locking nuts and seals.

Fig 3: Identifying Self-Locking Nuts

G06179232

Courtesy of BMW OF NORTH AMERICA, INC.

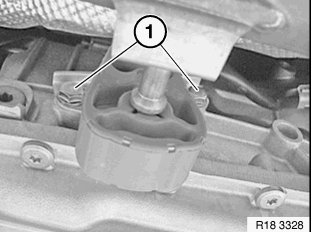

Only if the right-hand centre silencer is replaced. Release screws (1). Tightening torque 18 20 1AZ . Lower and remove right-hand centre silencer with assistance of a second person.

Fig 4: Identifying Screws

G00530392

Courtesy of BMW OF NORTH AMERICA, INC.

Only if the left-hand centre silencer is replaced. Release screws (1). Tightening torque 18 20 1AZ . Lower and remove left-hand centre silencer with assistance of a second person.

Fig 5: Identifying Exhaust System Screws Location

G06179234

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Adjust centre silencer to fit and connect with clamps. Centre clamp and tighten down. Tightening torque 18 31 5AZ.

The procedure is identical on both sides.

Fig 6: Tightening Centre Clamps

G04794086

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check exhaust system for leaks.
