Arrangement of flushing apparatus for transmissions GA6HP19Z, GA6HP26Z, GA6HP32Z, GA8HP45Z, GA8HP70Z, GA8HP90Z

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

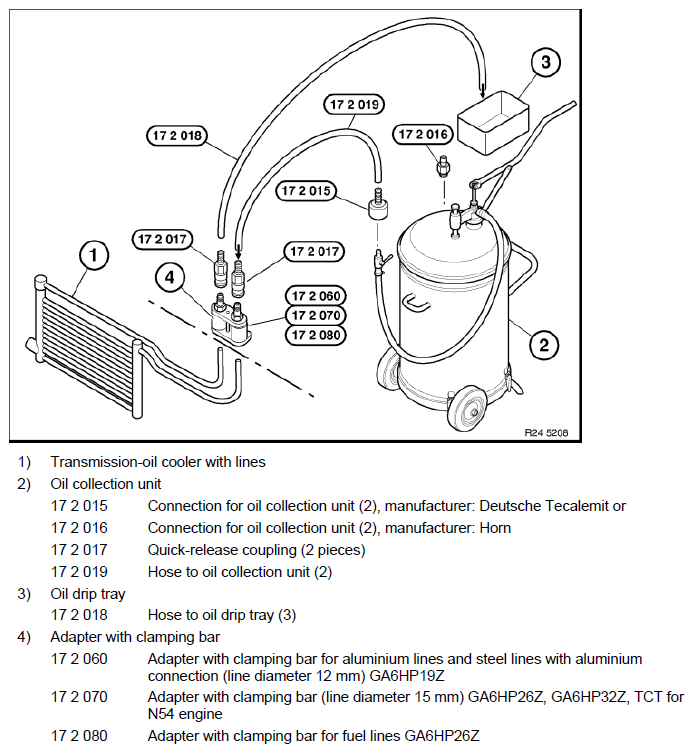

Fig 1: Identifying Transmission-Oil Cooler, Oil Collection Unit And Adapter
G06179208Courtesy of BMW OF NORTH AMERICA, INC.
