Arrangement of flushing apparatus for transmission A4S 310R

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

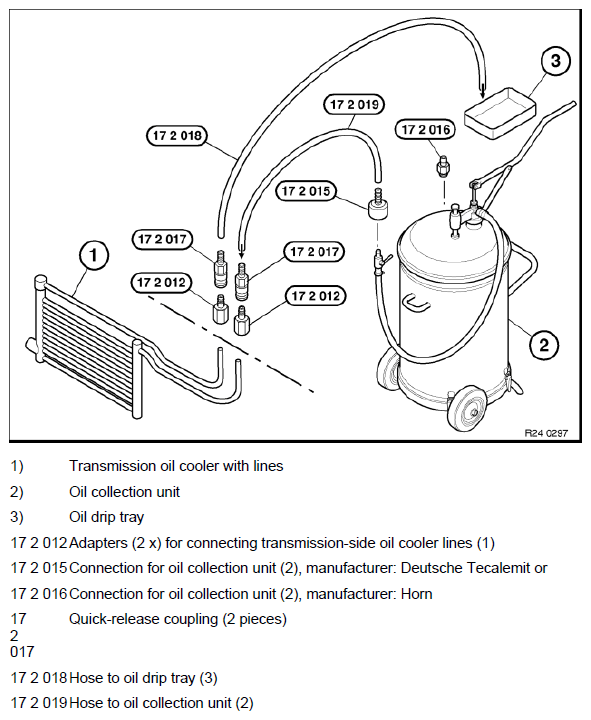

Fig 1: Identifying Transmission Oil Cooler, Oil Collection Unit And Oil Drip Tray
G06179204Courtesy of BMW OF NORTH AMERICA, INC.
