17 11 035 Removing and installing/replacing fan cowl with electric fan (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit.
Switch off ignition.
Remove intake manifold . See 13 REMOVING INTAKE DUCT (N63) .

Unclip Bowden cable for engine bonnet/hood actuator from transverse reinforcement (1).

Detach A/C line from holder.

Release screws on left and right sides. Tightening torque 51 71 4AZ, see 51 71 SEALS AND LOOSE BODY PARTS

Remove cross-brace (1).

Fig 1: Identifying Transverse Reinforcement And Cross-Brace

G04793950

Courtesy of BMW OF NORTH AMERICA, INC.

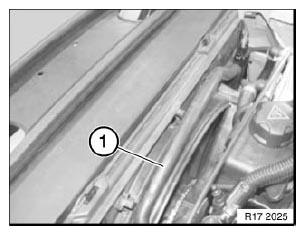

Release coolant hose (1) from fan cowl.

Fig 2: Identifying Coolant Hose And Fan Cowl

G06179178

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Fig 3: Identifying Plug Location

G04794053

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1).

Raise fan cowl (2) until holder (3) can be brought into assembly position.

NOTE: For reasons of clarity, illustration and text show coolant hose removed.
Do not raise fan cowl by fan impeller.

Fig 4: Identifying Fan Cowl, Holder And Lock

G04794054

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1).

Feed out fan cowl (2) towards top and remove.

Fig 5: Identifying Fan Cowl And Lock

G04794055

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert retaining tab (1) at bottom on module carrier.

Fig 6: Identifying Retaining Tab

G04794056

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Add final details to vehicle.
Now clear the fault memory.
