11 65 165 Removing and installing/replacing blow-off valve (N63)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove exhaust turbocharger, right, cylinders 1-4 (N63) and exhaust turbocharger, left, cylinders 5-8 (N63) .

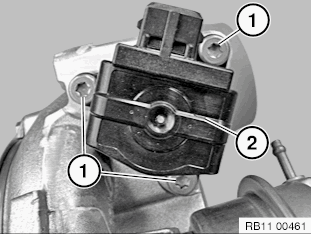

Release screws (1). Tightening torque 11 65 9 AZ . Remove blow-off valve (2).
Check vacuum connections for correct routing.
Check vacuum system for leaks.
