Topping up transmission fluid after a repair: Installation
WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Replace sealing ring.
Top up transmission fluid until it emerges from filling orifice.
Start engine.
Replenish transmission fluid until it emerges from filling orifice.

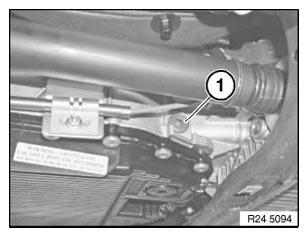

Screw in filler plug (1).
Tightening torque: 24 11 7AZ . See 33 11 REAR DIFFERENTIAL CASE WITH COVER .24 11 TRANSMISSION HOUSING, TRANSMISSION OIL SUMP .
Press brake pedal to floor and shift through all gears several times at idle speed. Then shift to "P" position (Park).
Then check fluid level.
