65 13 080 Removing and installing/replacing speaker (tweeter in rear side trim panel)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear side trim panel . See 51 43 012 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL UPPER SECTION and 51 43 034 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT LOWER SIDE TRIM SECTION .

Disconnect plug connection (1).

Release plastic nut (2) in counterclockwise direction and feed out speaker towards front.

Installation:

Ensure correct cable routing (3).

Do not place plastic nut (2) on thread at a skewed angle.

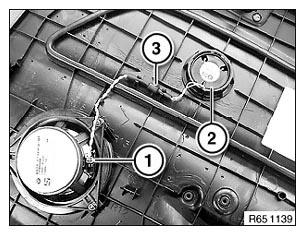

Fig 1: Identifying Plug Connection And Cable With Plastic Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure speaker (2) is correctly seated in door trim panel.

Door trim panel (2) must not be damaged.

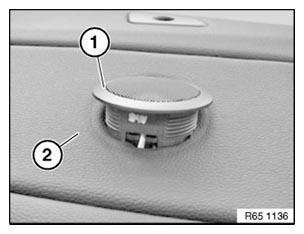

Fig 2: Identifying Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
