65 20 405 Removing and installing/replacing aerial/antenna for Satellite Digital Audio Radio Service (SDARS)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
When bonding the empty housing for the luggage compartment aerial/antenna, it is absolutely essential to adhere to the minimum hardening time
(vehicle movable)!
Necessary preliminary tasks:
- Remove trim for rear lid . See 51 49 000 REMOVING AND INSTALLING/REPLACING PANEL FOR REAR LID .

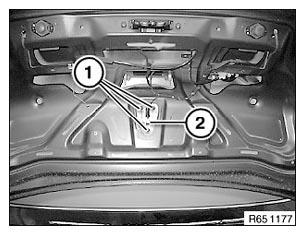

Unscrew nuts (1).
Disconnect plug connection (2) and remove SDARS aerial/antenna.
Tightening torque 65 20 3AZ, see 65 20 AERIAL .
