65 20 300 Removing and installing/replacing bumper aerial (FM)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim . See 51 12 156 REMOVING AND INSTALLING/REPLACING REAR BUMPER TRIM or 51 12 156 REMOVING AND INSTALLING/REPLACING REAR BUMPER TRIM (M TECHNIC AERODYNAMIC KIT) .

Disconnect plug connection (1).

Pull out grommet (2) and feed out aerial cable.

Installation:

Make sure grommet (2) is correctly seated so as to avoid water ingress.

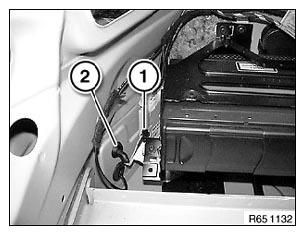

Fig 1: Identifying Plug Connection And Grommet

G06178014

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure grommet (1) is correctly seated so as to avoid water ingress.

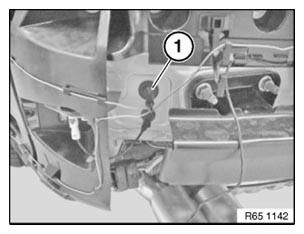

Fig 2: Identifying Grommet

G06178015

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture shows E93.

Unclip cable fasteners (1).

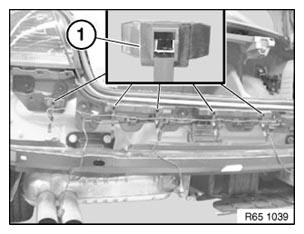

Fig 3: Identifying Cable Fasteners

G06178016

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage aerial cable (1) from bumper carrier mounting.

Installation:

Ensure correct lead routing.

Fig 4: Identifying Aerial Cable

G06178017
