65 20 250 Removing and installing/replacing rear telephone aerial

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim . See 51 12 156 REMOVING AND INSTALLING/REPLACING REAR BUMPER TRIM or 51 12 156 REMOVING AND INSTALLING/REPLACING REAR BUMPER TRIM (M TECHNIC AERODYNAMIC KIT) .

Disconnect plug connection (1).

Release screw (2), turn telephone aerial (3) and feed out.

Installation:

Make sure grommet (4) is correctly seated so as to avoid water ingress.

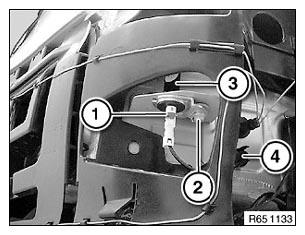

Fig 1: Identifying Plug Connection And Telephone Aerial

Courtesy of BMW OF NORTH AMERICA, INC.
