51 31 015 Repairing Damage To Windscreens Caused By Pitting (Stone Chips) (Clear And Tinted Laminated Safety Glass)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Field of vision (no repairs acceptable):

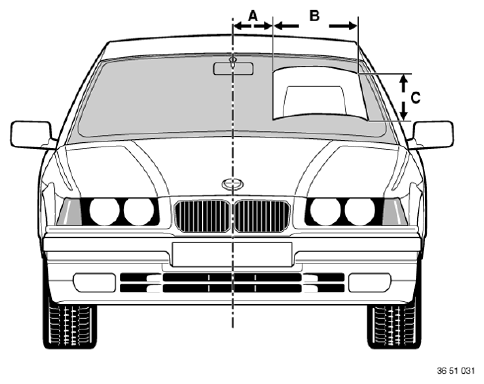

Fig 1: Identifying Field Of Vision
G05779271Courtesy of BMW OF NORTH AMERICA, INC.
  1. 50 mm (gap between field of view/center of vehicle)
  2. Up to end of wiper range, outside (field of view width)
  3. Restriction by wiper range (height of field of view)
IMPORTANT: Repairs must only be carried out outside of the field of vision.

Refer to 51 31.. .
