34 32 951 Replacing rear left or right brake hose (between rear axle carrier and body)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 34 3 170
Necessary preliminary tasks:
- Remove rear left wheel . See WHEELS .
NOTE:
Read and comply with General Information .
After completing work: bleed brake system .
After completing work: bleed brake system .
Press clutch pedal down to floor and secure with pedal support.
NOTE:
The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.
IMPORTANT:
Grip brake hose at square drive to prevent connecting piece from turning in retaining bracket.
Never twist brake hose (3) when installing it and avoid all contact with parts attached rigidly to the body.
Never twist brake hose (3) when installing it and avoid all contact with parts attached rigidly to the body.

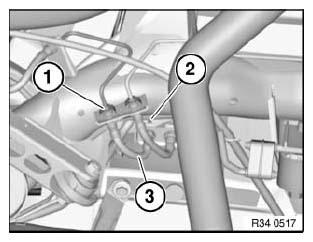

Disconnect brake hose from brake line (1).
Detach brake hose from brake line (2) and remove brake hose (3).
Installation:
Tightening torque, see 34 32 BRAKE LINES . .
Installation:
Use torque wrench (Hazet 6282-1CT with reversible ratchet head).

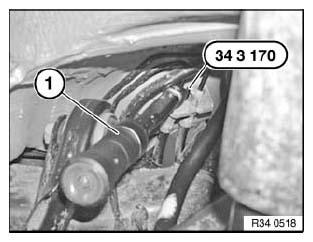

Tighten brake line using torque wrench (1) and special tool 34 3 170 .
