Arrangement of flushing apparatus for transmissions GA6HP19Z, GA6HP26Z, GA6HP32Z

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

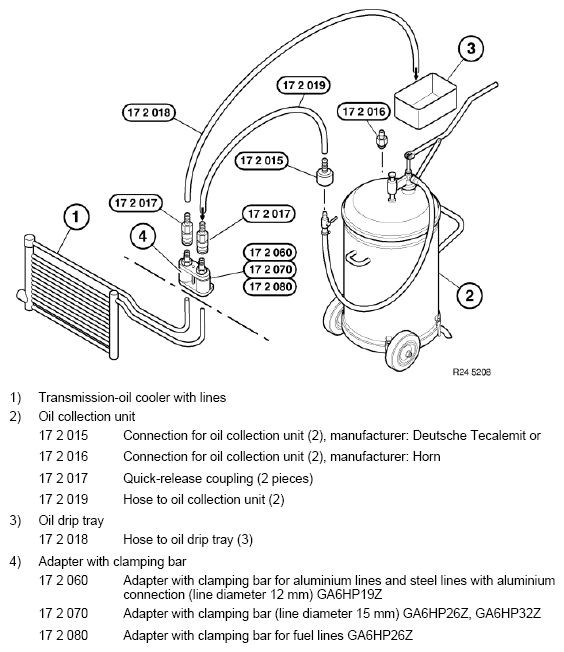

Fig 1: Arrangement Of Flushing Apparatus For Transmissions GA6HP19Z, GA6HP26Z, GA6HP32Z
G05777744Courtesy of BMW OF NORTH AMERICA, INC.
