11 21 571 Replacing Roller Ball Bearing In Crankshaft (N52K)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 500
11 2 340
11 2 350

Necessary preliminary tasks: Remove clutch.

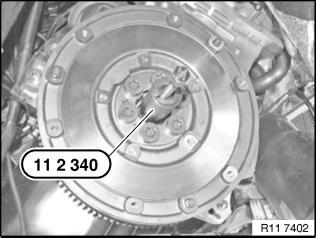

Remove guide bearing with special tool 11 2 340.

Fig 1: Removing Guide Bearing With Special Tool 11 2 34

Courtesy of BMW OF NORTH AMERICA, INC.

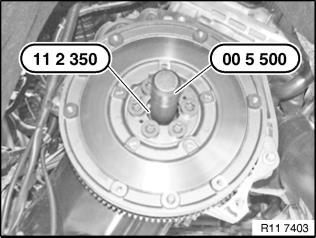

Install new thrust bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500.

Fig 2: Installing New Thrust Bearing And Drive Firmly Home With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
