Replacing Output Flange Radial Seal (S5D 260Z/ 310Z/ S5D 320Z)

Unflange propeller shaft from transmission and tie up to one side. See REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT .

Support transmission with a workshop hoist. See Fig 1 . Unfasten screws and remove cross-member. Upon installation, tighten screws to specification. See TORQUE SPECIFICATIONS  .

Fig 1: Removing Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

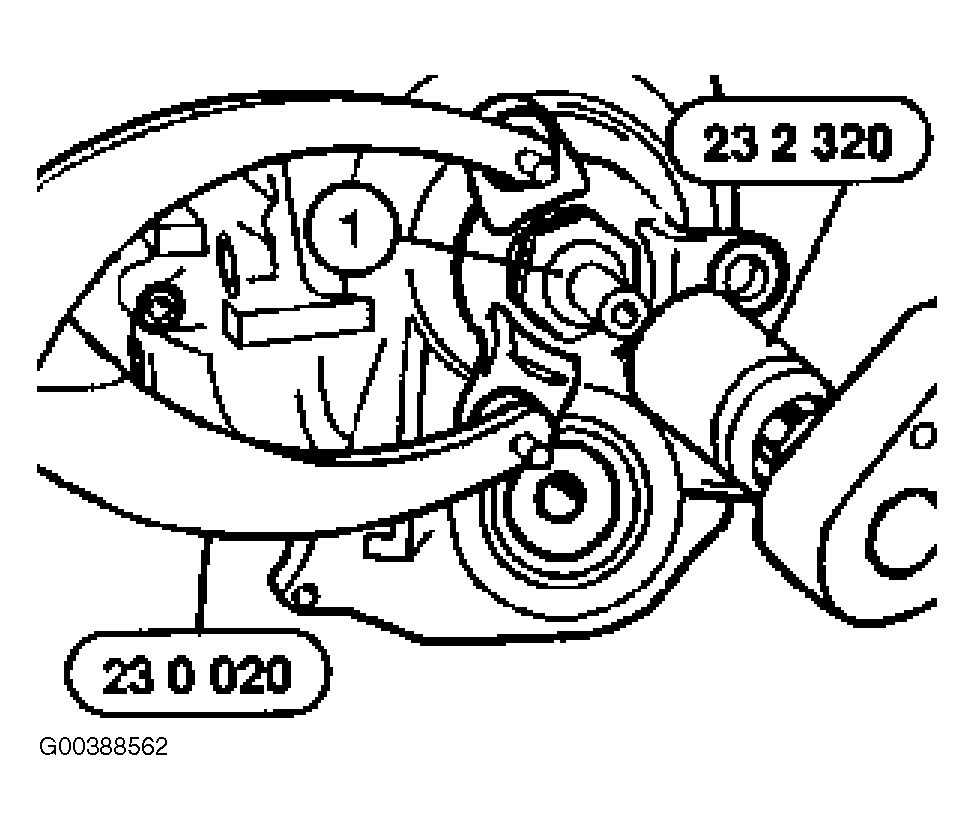

Brace output flange with Special Tool (23 0 020). See Fig 2 . Release collar nut (1) with Special Tool (23 2 320). Upon installation, install collar nut (1) with screw retaining compound. Tighten to specification. See TORQUE SPECIFICATIONS  .

Fig 2: Releasing Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

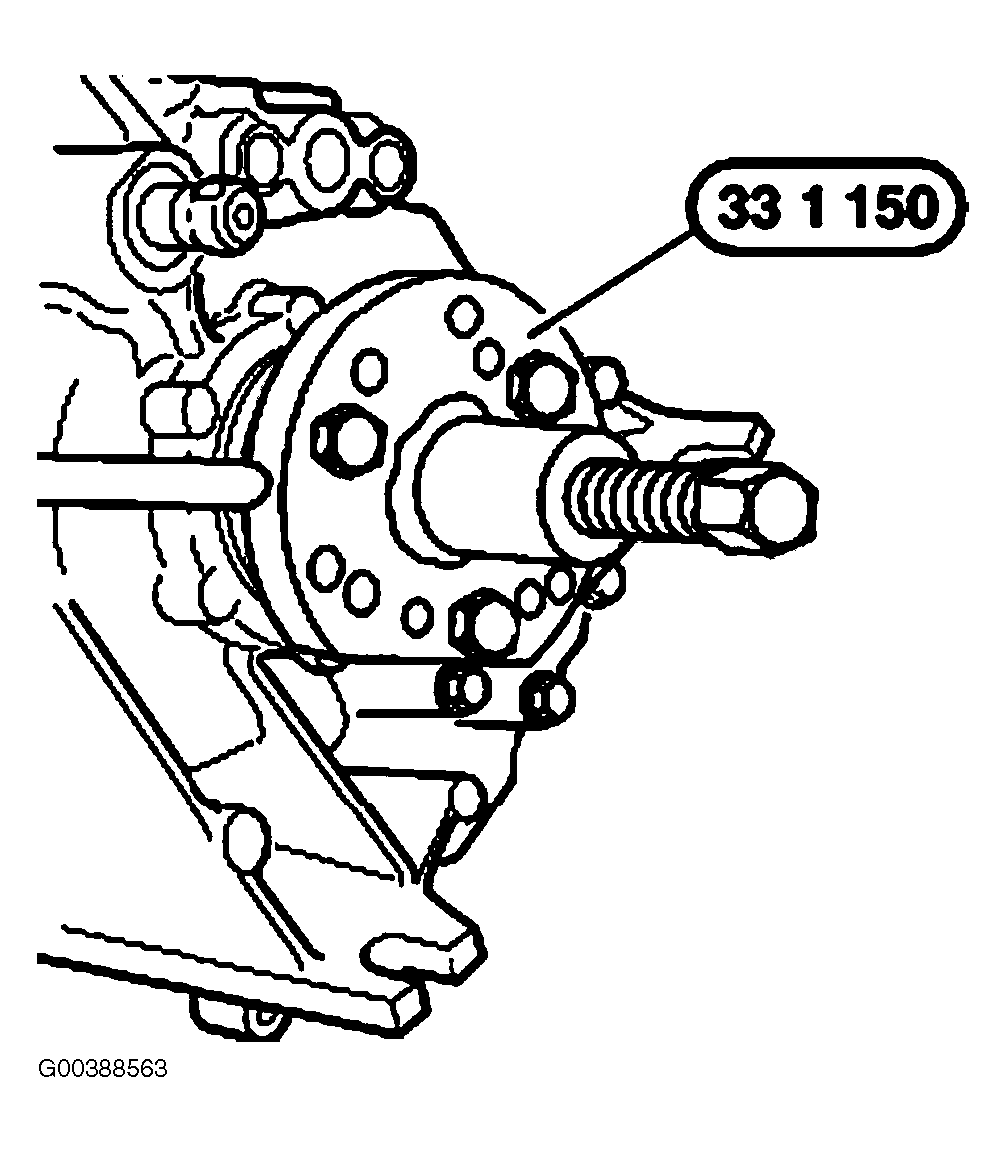

Detach output flange with Special Tool (33 1 150) from output shaft. See Fig 3 . Upon installation, heat output flange to approx. 80°C and push onto output shaft.

Fig 3: Detaching Output Flange

Courtesy of BMW OF NORTH AMERICA, INC.

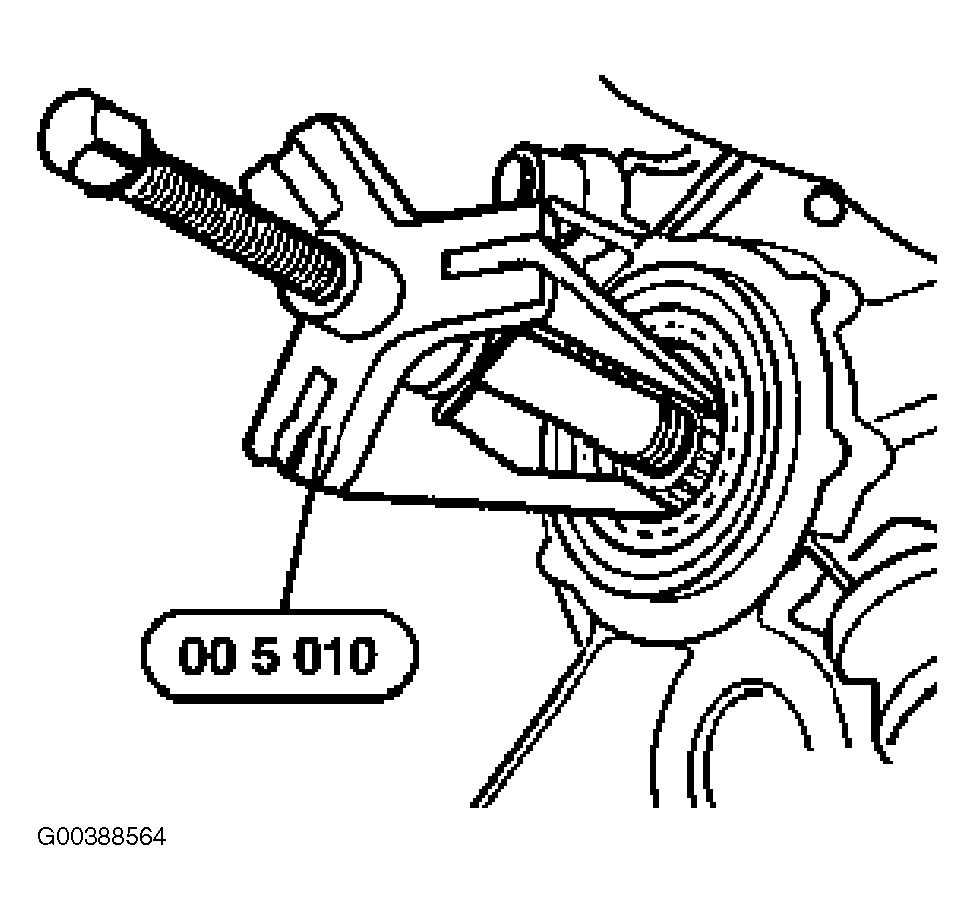

Remove radial seal with Special Tool (00 5 010). See Fig 4 .

Fig 4: Removing Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.

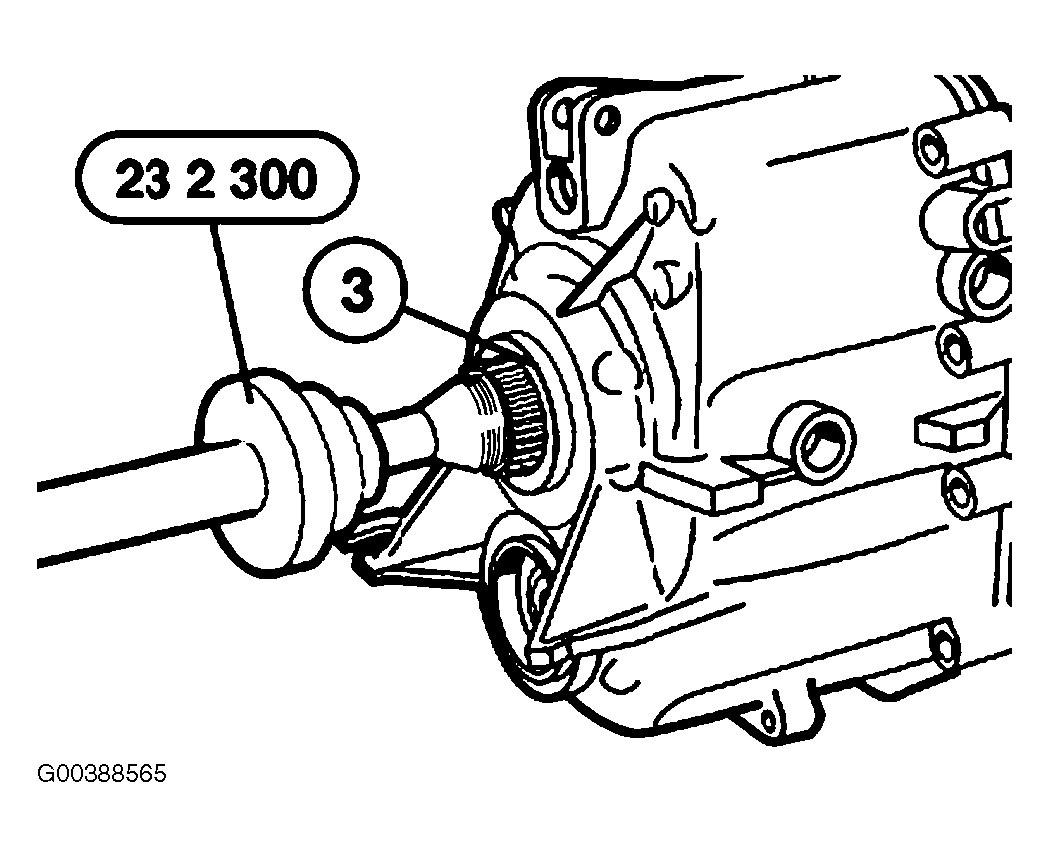

Coat sealing lips of new radial seal (3) with transmission oil. Drive radial seal (3) home flush with Special Tool (23 2 300). See Fig 5 . To drive in, use a plastic hammer.

Fig 5: Installing Radial Seal
