Replacing Sealing Sleeve For Transmission Housing (GA6HP19Z)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: After completion of work, check transmission fluid level. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6HP19Z/6HP19Z) . Use only the approved transmission fluid. See RECOMMENDED FLUID . Failure to comply with this requirement will result in serious damage to the automatic transmission.

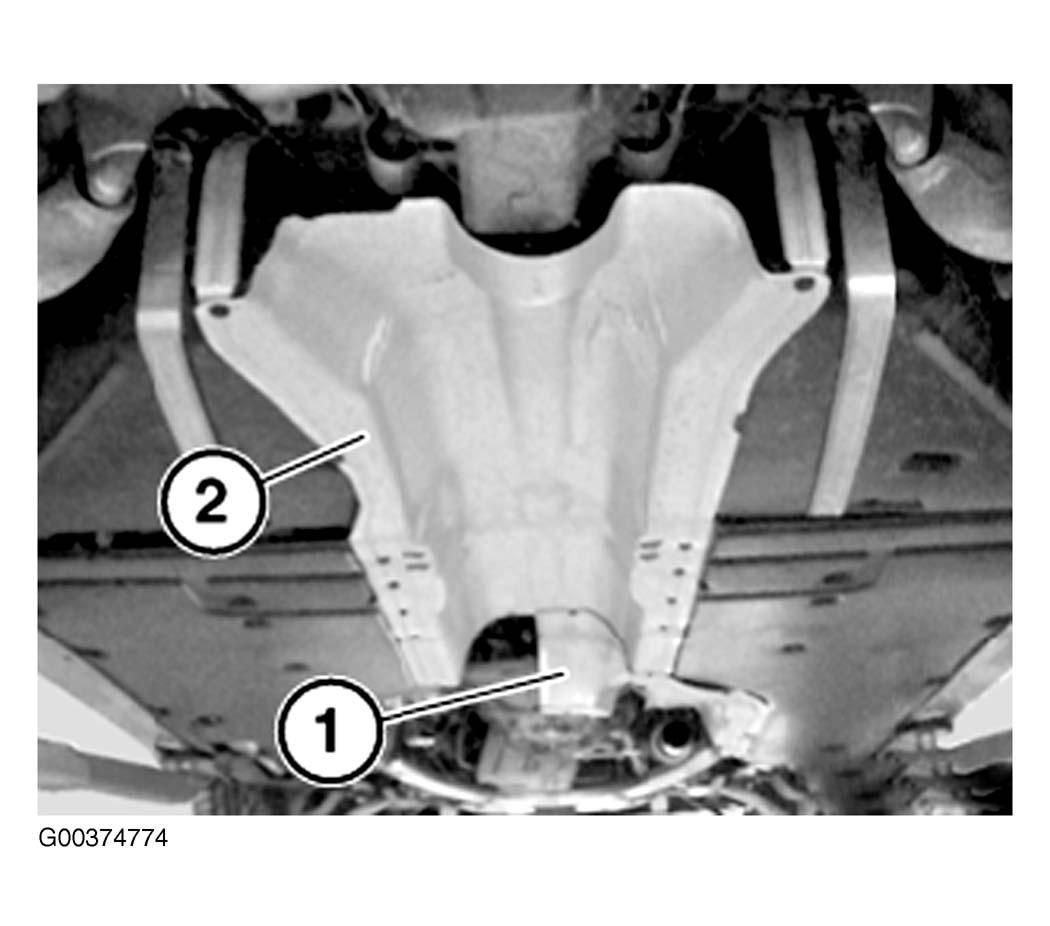

Remove heat shields (1) and (2). See Figure .

Release screws (1) and nuts (2) and remove transmission cross-member. See Figure .

Remove transmission sump. See REMOVING AND INSTALLING/SEALING OR REPLACING TRANSMISSION SUMP (GA6HP19Z) .

Support transmission with workshop hoist.

Unlock and disconnect plug (1) by turning. See Fig 1 .

Fig 1: Unlocking Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Special Tool (24 2 390) in sealing sleeve (1). See Fig 2 .

Fig 2: Inserting Special Tool In Seating Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock sealing sleeve with slide (1). See Fig 3 .

Fig 3: Unlocking Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Note position of sealing sleeve. Pull out sealing sleeve (1). See Fig 4 . Upon installation: screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing sleeve. Lug on sealing sleeve must not be damaged.

Fig 4: Pulling Out Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
