Replacing Output Flange Shaft Seal (GA6HP19Z)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: After completion of work, check transmission fluid level. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6HP19Z/6HP19Z) . Use only the approved transmission fluid. See RECOMMENDED FLUID . Failure to comply with this requirement will result in serious damage to the automatic transmission.

Remove rear underbody protection.

Remove exhaust system after catalytic converter. See REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (M54).

Remove heat shields (1) and (2). See Fig 1 .

Fig 1: Removing Heat Shields

G00374774

Courtesy of BMW OF NORTH AMERICA, INC.

Support transmission from underneath: support with Special Tools (24 5 306, 24 5 301) and (00 2 030). See Fig 2 . Set up special tool 24 5 306:

All supports to "A".
Supports 3 and 4 are at rear of transmission.
Support lettering points forwards.

Fig 2: Supporting Transmission

G00374749

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and nuts (2) and remove transmission cross-member. See Fig 3 .

Fig 3: Removing Transmission Cross-Member

G00374755

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove transmission bearing block (1). See Fig 4 . Upon installation, tighten screws to specification. See TORQUE SPECIFICATIONS .

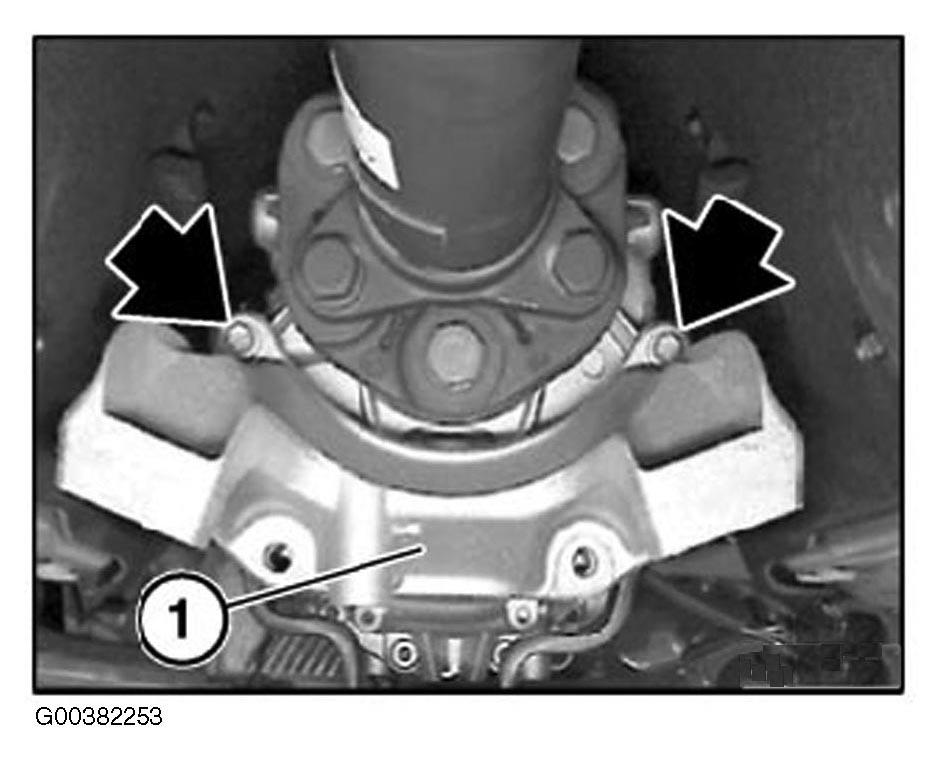

Fig 4: Removing Transmission Bearing Block

G00382253

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To rotate propeller shaft, unlock parking gear.

Unflange propeller shaft from transmission and tie up to one side. See Fig 5 .

Fig 5: Disconnecting/Connecting Joint Disc From Transmission

G00107759

Courtesy of BMW OF NORTH AMERICA, INC.

Grip output flange (1) with Special Tool (23 0 020). See Fig 6 . Release nut with Special Tool (24 2 380). Upon installation: replace nut and tighten to specification. See TORQUE SPECIFICATIONS . Secure with a mandrel (8 mm) by caulking.

Fig 6: Gripping Output Flange With Special Tool

G00382462

Courtesy of BMW OF NORTH AMERICA, INC.

Detach output flange from output shaft. Remove spacer.

Attach Special Tool (24 2 353) to output shaft (1). See Fig 7 .

Fig 7: Attaching Special Tool To Output Shaft

G00382463

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in Special Tool (24 2 351) until it is firmly connected with shaft seal. See Fig 8 . Pull out radial shaft seal by screwing in Special Tool (24 2 352).

Fig 8: Pulling Out Radial Shaft Seal

G00382464

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip of radial seal (1). See Fig 9 . Drive in radial seal (1) with Special Tool (24 2 370) as far as it will go.

Fig 9: Driving In Radial Seal

G00382465

Courtesy of BMW OF NORTH AMERICA, INC.
