E46 4WD: Selector Shaft Sealing Cap On Left Transmission Side Leaking

WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

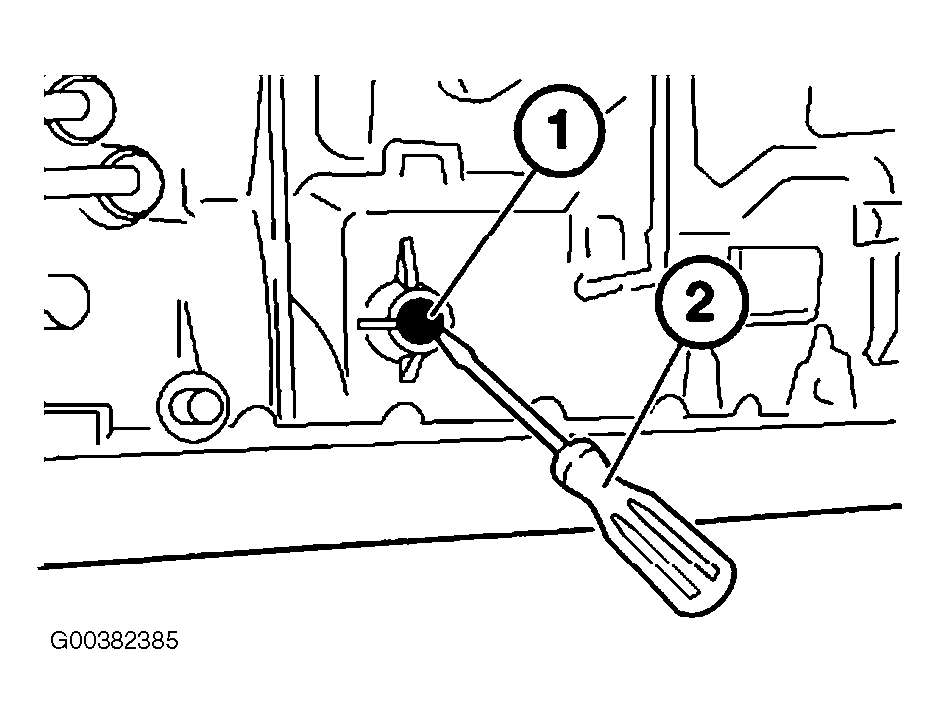

Lever out sealing cap (1) with a screwdriver (2). See Fig 1 .

Fig 1: Levering Out Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Drift (2) for driving in sealing cap is contained in repair kit.

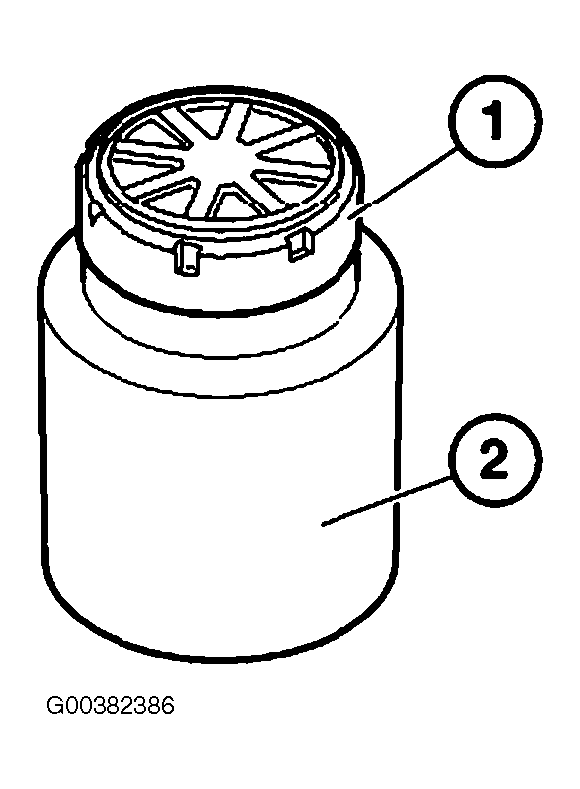

Place new sealing cap (1) on drift (2). See Fig 2 .

Fig 2: Placing New Sealing Cap On Drift

Courtesy of BMW OF NORTH AMERICA, INC.

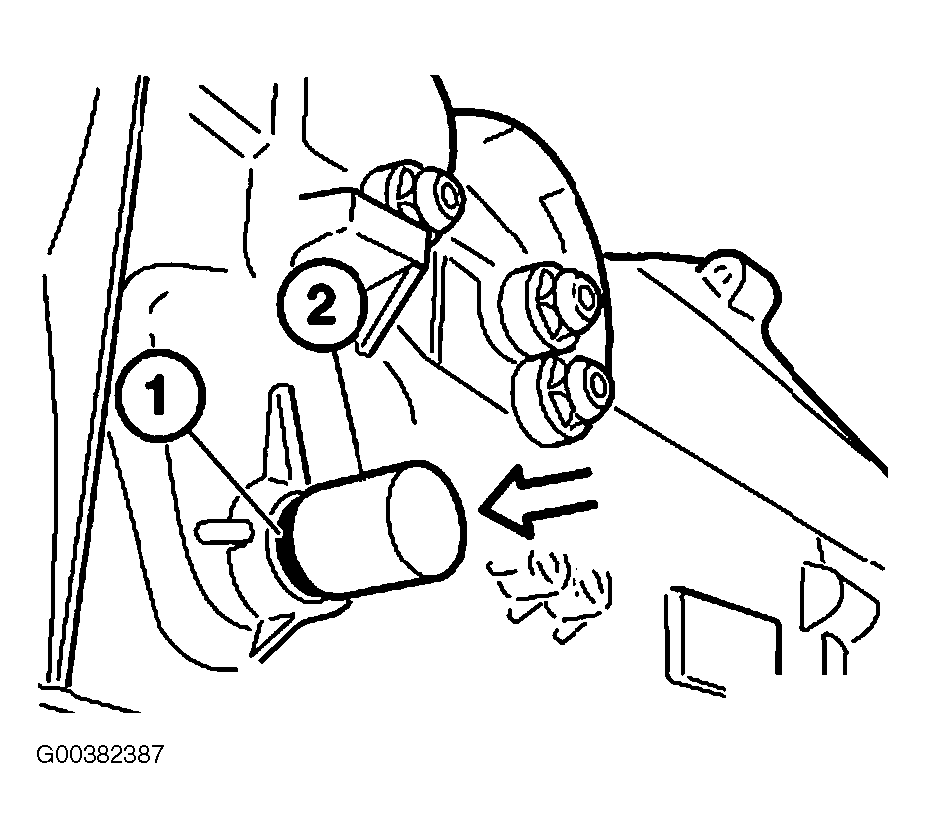

Drive in new sealing cap (1) with drift (2) as far as it will go. See Fig 3 .

Fig 3: Driving In New Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.
