51 12 157 Replacing rear bumper trim

WARNING: This page is about a different car, the 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

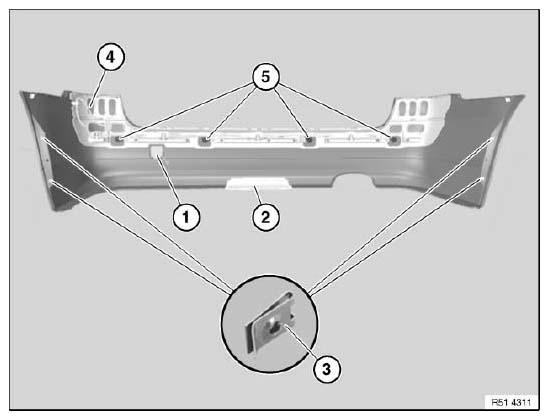

Fig 1: Identifying Rear Bumper Trim Components

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover cap (1) for tow lug.

If necessary, remove flap for towing hitch (2)

If necessary, replace faulty metal nuts (3).

Version with Park Distance Control:

Remove all ULTRASONIC TRANSDUCERS (5) .

Feed out wiring harness (4) for ultrasonic transducer (5).

Version with M Technic aerodynamic kit:

Remove DIFFUSER .
